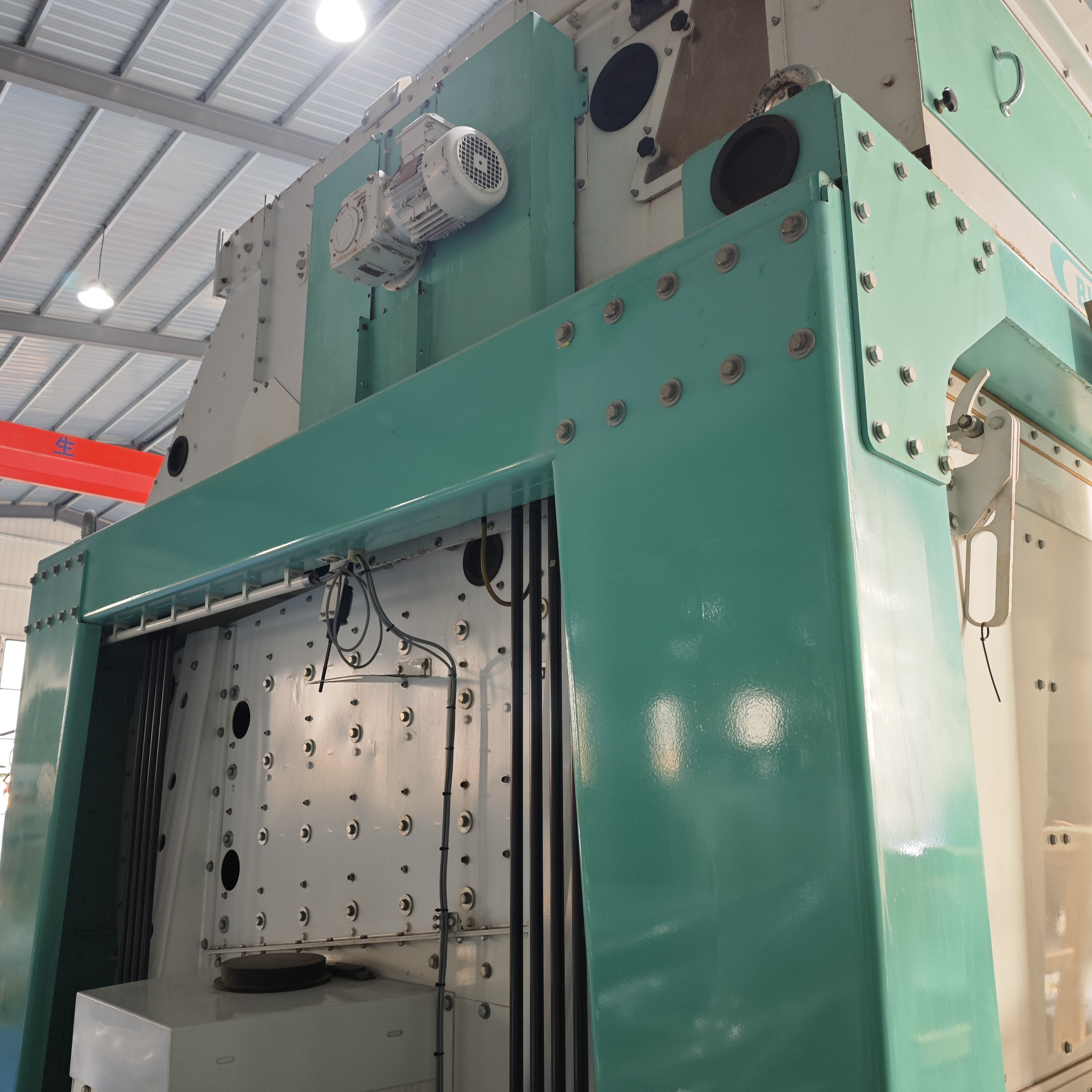

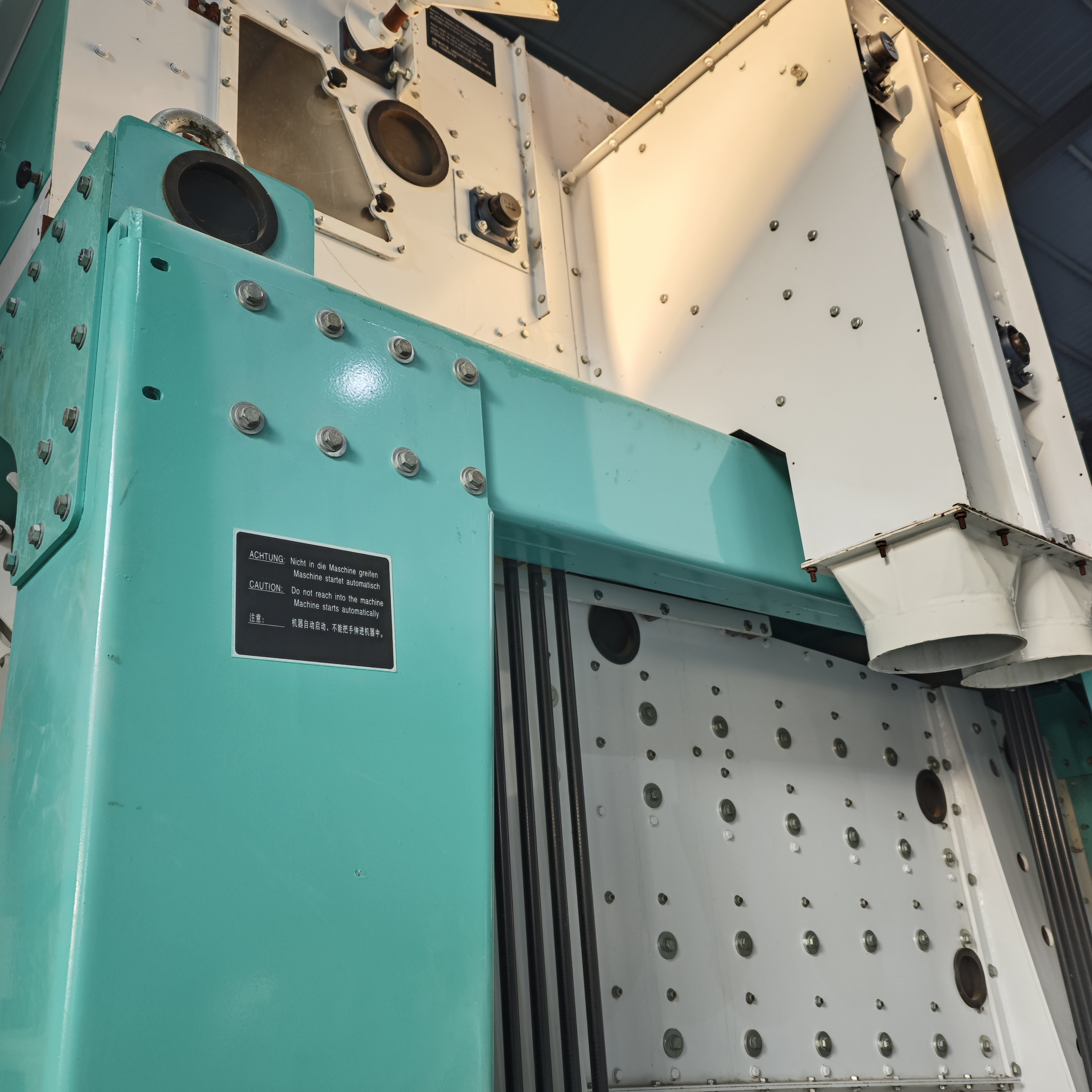

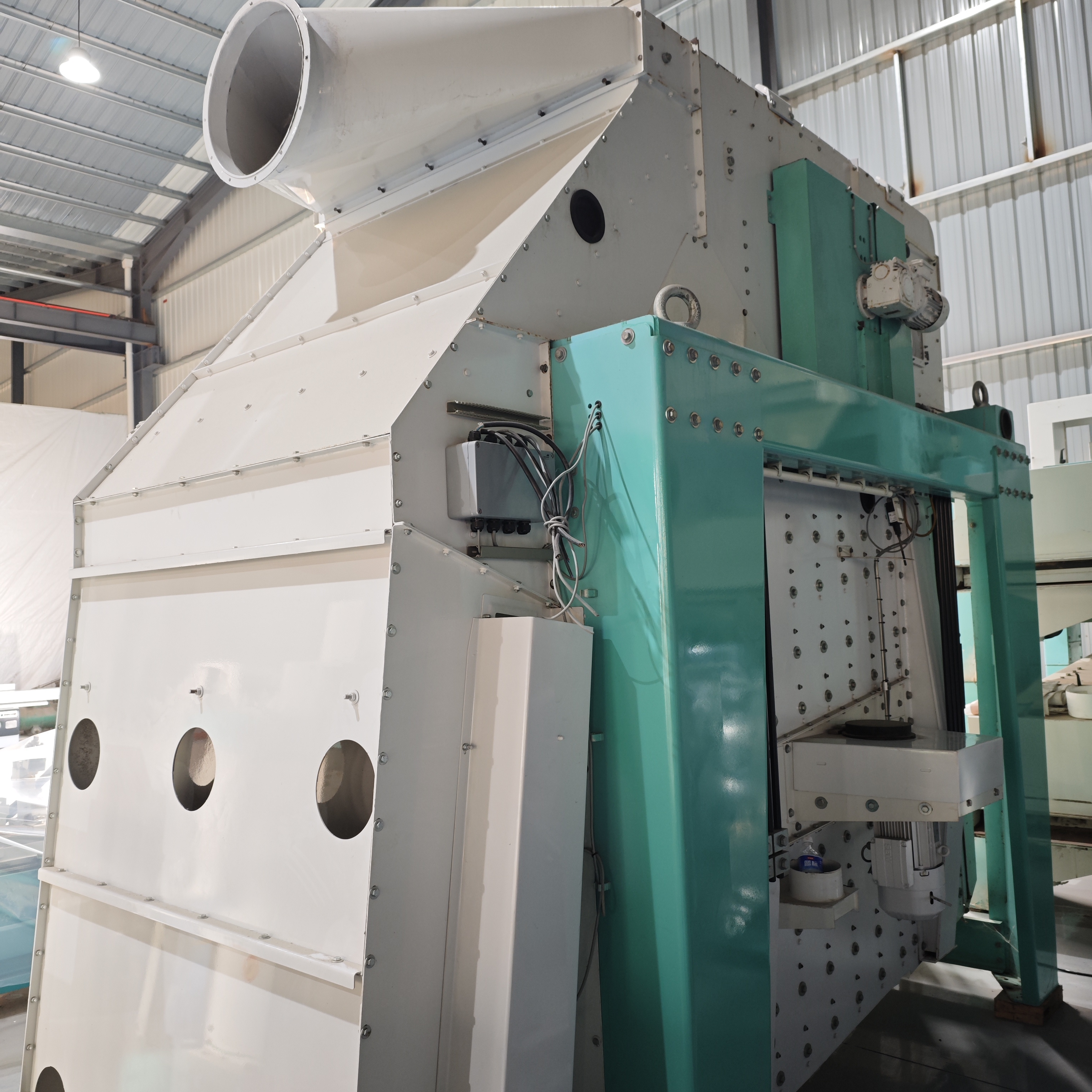

The Bühler LKAA-154A-4 Universal Cleaning Machine is an industrial grain cleaning and grading machine designed for high-capacity processing of wheat, barley, corn, canola, and soybeans. Equipped with a two-stage sieve system and integrated aspiration, this machine separates coarse impurities, fine particles, dust, and lightweight contaminants from grain before further processing, storage, or milling.
This used Bühler grain cleaner is suitable for grain intake facilities, flour mills, grain elevators, seed processing plants, and agricultural processing operations requiring high throughput and reliable grain cleaning performance.
| Parameter | Specification |
|---|---|
| Manufacturer | Bühler |
| Model | LKAA-154A-4 |
| Machine type | Universal grain cleaning and grading machine |
| Working width | 1,500 mm |
| Total sieve area | 24 m² |
| Pre-cleaning sieve area | 12 m² |
| Main sieve area | 12 m² |

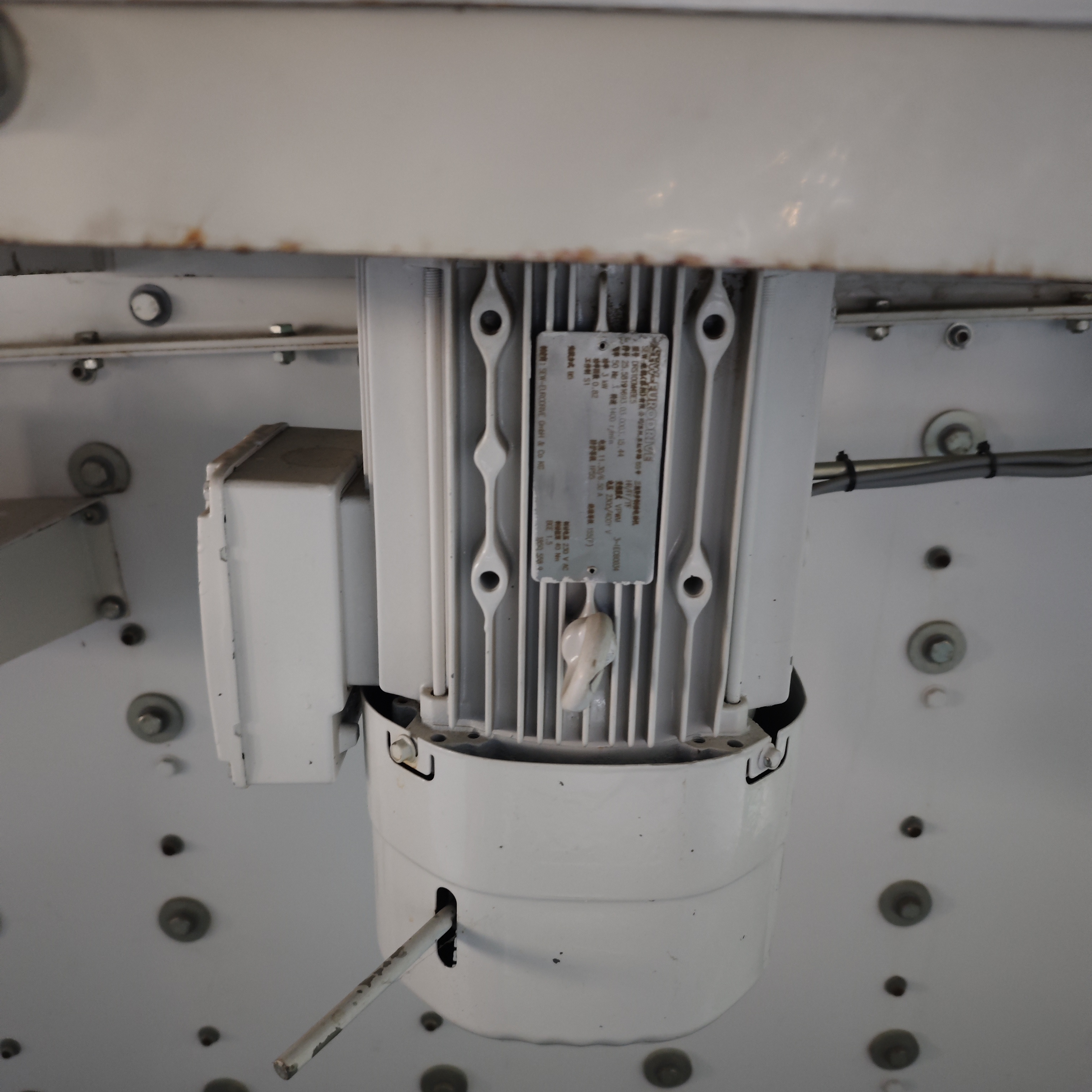

| Sieve box drive motor | 3.0 kW |
| Separator drive motor | 0.75 kW |
| Exhaust air requirement | 195 m³/min at 900 Pa |
| Sieve box air requirement | 12 m³/min at 300 Pa |
| Approximate machine weight | 6,600 kg |
| Approximate dimensions (L × W × H) | 3,420 × 2,630 × 3,300 mm |
| Main applications | Wheat, barley, corn, canola, soybeans |
| Cleaning method | Mechanical screening and aspiration |
