Retrofit Belt Drive for Airtronic Roller Mills MDDK and MDDL.
.png)
The new belt drive for the MDDK/L roller mill offers substantial advantages over the gear drive version
This power transmission is easy to install and makes maintenance very much easier and more cost efficient.
Buhler scope of supply:

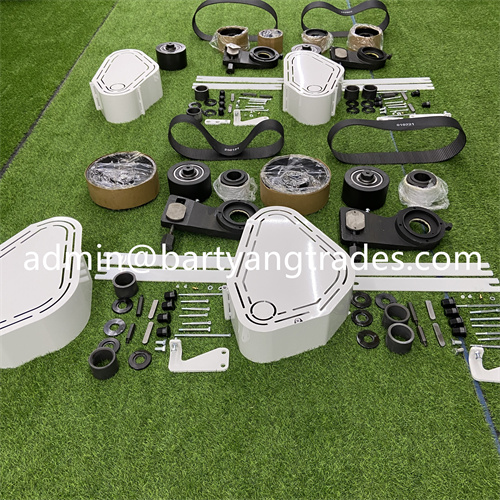

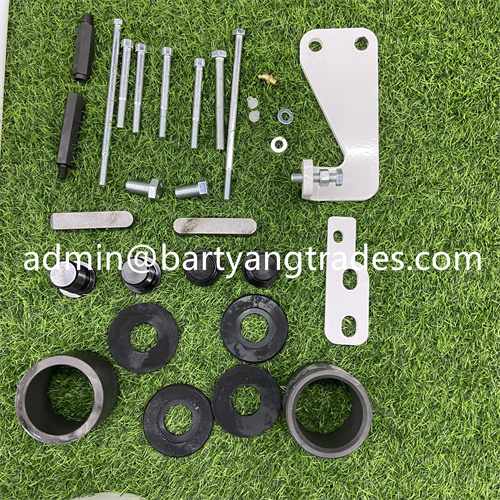

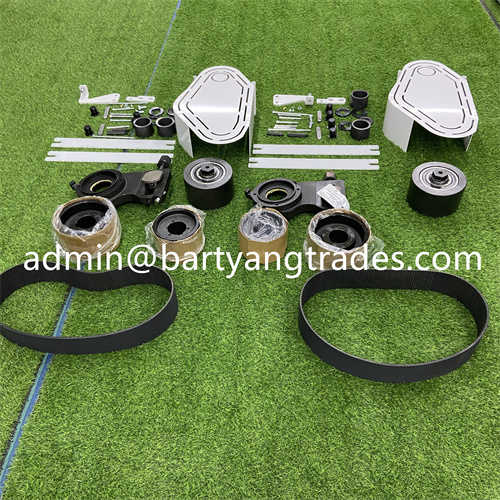

The retrofit kit is supplied complete with all the components required for installation, including conversion instructions.
The assembly kit includes 1 spare belt. For the conversion, one installation set is required per plant.
The price does not include installation. Time requirement for conversion is two to three hours per roll pair.
CAUTION: Applies to MDDK/L

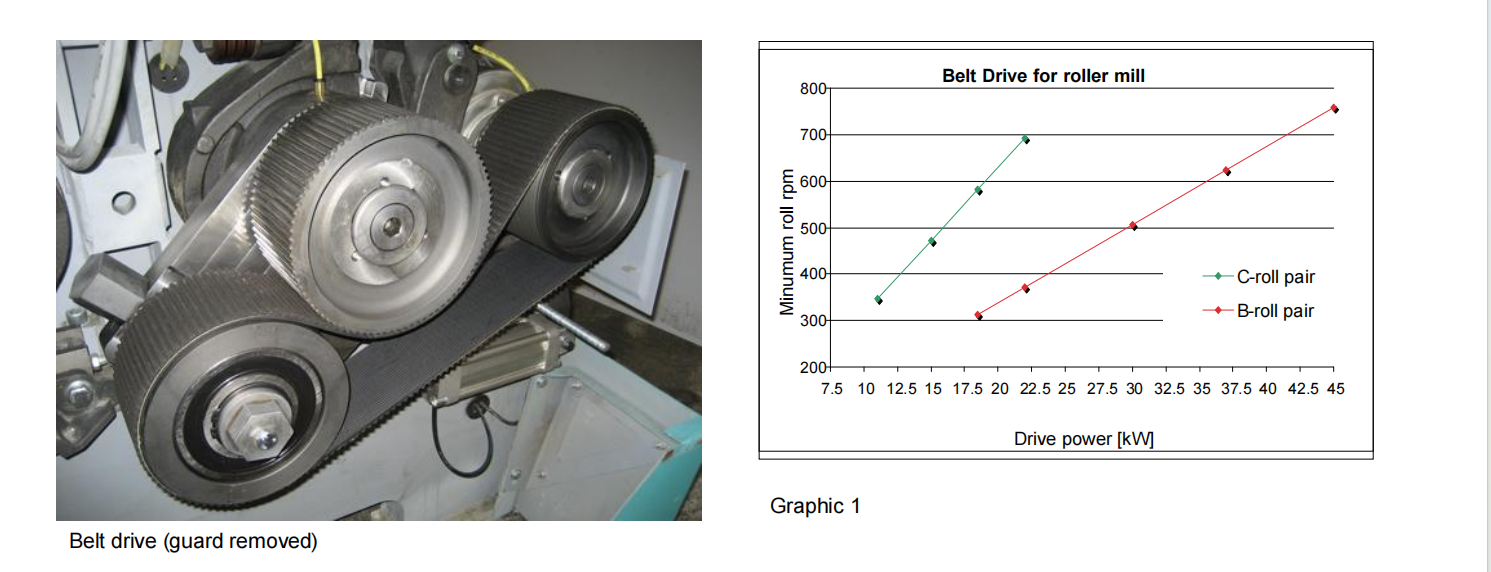

The roll speed must be checked for the correct torque and if necessary be modified at the drive end. Graphic 1 shows the minimum speed, which must always be reached. If the roll motor power is known, it will be possible to derive the speed. If the speed is too low, this will reduce the belt service life.
CAUTION: Applies to MDDL
In order to prevent a collision between the drive belts of the top mating pass (1) and the transmission (2), the drive belt must not go beyond the center (3) of the roller mill(Graphic 2). If necessary, the drive motor may have to be slightly moved
